Load Testing in the Azure Cloud

Alan Barr

QA Engineer

What is load testing?

Why Load test?

Load Testing gives us reporting to know what changes are making the most impact

Load Testing myVu

Where do I start?

What tools are out there I can use off the shelf?

What constraints do I need to consider when choosing a tool?

Many Tools Available

Open Source and Proprietary, GUI/Code

JMeter
Gatling
Locust.IO

Grinder
Visual Studio
HP Load Runner

Use the right tool for the job

myVu Challenges

All test environments use HTTPS

Tool would need to handle multipart form uploads

Ability to route requests from different locations not from local network

Allow for different upload scenarios

The Tools

CasperJS/PhantomJS

Headless Browser with JavaScript API

Setup configuration for writing the file, command line options, and specific user config


var fs = require('fs');
var casper = require('casper').create({waitTimeout:10000});
var user = casper.cli.get('user');
var config = require('./config.json');
var urlApp = config["host"];
var textFileName = user == 'user1' ? "useroauth.txt" : "useroauth1.txt";
var tokenFileName = user == 'user1' ? "usertoken.txt" : "usertoken1.txt";

Go to the page and fill the form out and submit


	casper.start(urlApp, function() {
	    this.waitForSelector('form', function() {
	    this.fillSelectors('form', {
	    	'#LoginId': config[user]['username'],
	    	'#Password': config[user]['password']
	    }, true);
	    });
	});

Wait long enough for cookies to load grab the refresh code


	casper.then(function() {
	    this.wait(5000,function(){
	        this.echo("saved oauth token");
	        var cookies = phantom.cookies;
	        cookies.forEach(function(e){
	            if(e.name == 'refreshCode') {
	               var savedCode = e.value.replace(/\%22/g, '');
                   fs.write(tokenFileName, savedCode, 644);
                   this.echo("saved refresh token");
	            }
	        });
	    });
	});

Wait for the authorization header code


casper.on('resource.requested', function(resource) {
    var authHeader = resource.headers.forEach(function(e){
        if(e.name == "Authorization"){
        var savedAuth = JSON.stringify(e.value).replace(/\"/g, '');
            fs.write(textFileName, savedAuth, 644);
        }
    });
});

casper.run();

Locust.IO

Python 2.7, Requests and Requests Tool-belt modules

Load config data


from locust import HttpLocust, Locust, TaskSet, task, events
from requests_toolbelt import MultipartEncoder
import requests
import json
from random import randint
import sys
import datetime
requests.packages.urllib3.disable_warnings()
token0 = open("useroauth.txt", 'r').read()
token1 = open("useroauth1.txt", 'r').read()
refreshToken0 = open("usertoken.txt", 'r').read()
refreshToken1 = open("usertoken1.txt", 'r').read()
config = json.load(open("config.json"))
token = [token0,token1]
atlasID = {token0: config["user1"]["loanAccount"],
token1: config["user2"]["loanAccount"]}
host = config["host"]

Create a task to run



class MyTaskSet1(TaskSet):

	@task
	def file_upload(self):
		global token
		attach = open('assets/Intro_to_Agile.pdf', 'rb')
		randomNumber = randint(0, 1)

		thisToken = token[randomNumber]
		headers = { 'Authorization': thisToken }
		m = MultipartEncoder(
		fields = {
		'atlasLeadId':atlasID[thisToken],
		'blitzDocFolderId':'-1',
		'documentType':'upload',
		'file0': ('Intro_To_Agile.pdf', attach, 'application/pdf', {'Expires': '0'})
				}
		)
		r = self.client.post("/api/fileStorage/Upload",
		data=m,headers=headers, verify=False, catch_response=False)
		print("Locust instance ({}) executing my_task".format(self.locust))

Let Locust know what tasks to run


class MyLocust(HttpLocust):
    min_wait = 5000
    max_wait = 15000
    host = config["host"]
    task_set = MyTaskSet1

Start Testing?

Azure Cloud

Create a distributed environment to simulate distant users

Set up a network gateway
Set up Linux Virtual Machines
Configure ports so machines can communicate
Open a port so these machines can access your network
Optionally: Setup an Azure Function Endpoint to send results to an Azure Storage Table
Optionally: Graph our Data in an Azure Notebook

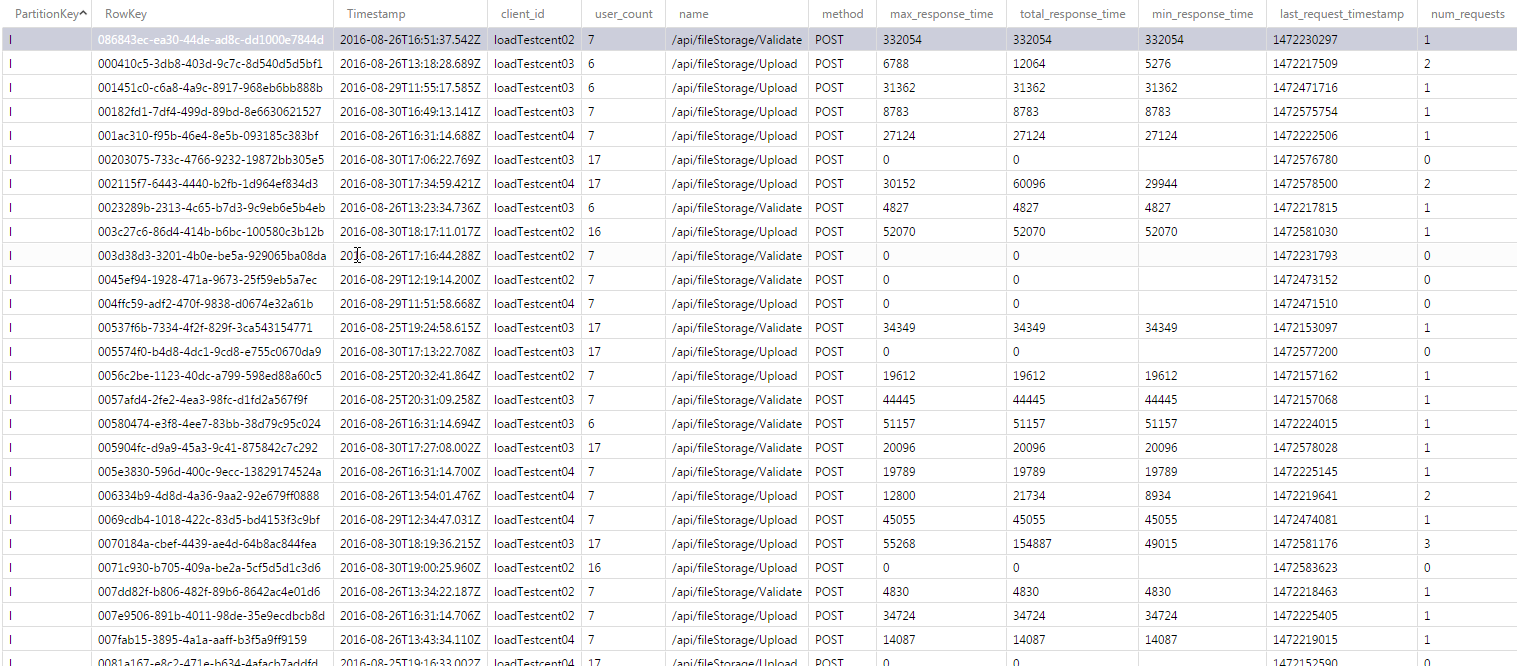

Storing Result Data

Configure endpoint to accept data and save it to the NoSQL storage table

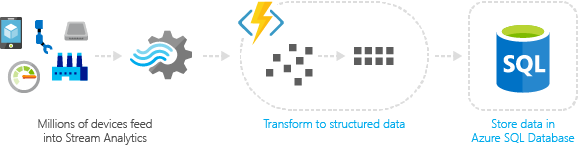

Azure Functions Example Sending data between places


    module.exports = function (context, data) {
    context.log("received report");

    if(data) {
        context.res = {status: 200};

        context.bindings.locustoutputTable =
        {
            "partitionKey":"l",
            "rowKey": context.bindingData.InvocationId,
            "client_id" : data.client_id,
            "user_count" : data.user_count,
            "name" : data.name,
            "method" : data.method,
            "max_response_time" : data.max_response_time,
            "total_response_time" : data.total_response_time,
            "min_response_time" : data.min_response_time,
            "last_request_timestamp" : data.last_request_timestamp,
            "num_requests" : data.num_requests,
            "total_content_length" : data.total_content_length,
            "num_failures" : data.num_failures,
            "start_time" : data.start_time,
            "test_name" : data.test_name,
            "num_reqs_per_sec": data.num_reqs_per_sec,
            "response_times": data.response_times
        };
    }
    else {
        context.res = {
            status: 400,
            body: { error: 'Must be submitted as Locust Report Data'}
        };
    }

    context.done();
}

Azure Notebooks

Graphing Our Results

Response Time Results with a large distribution

Testing Iteration

Monitoring Results

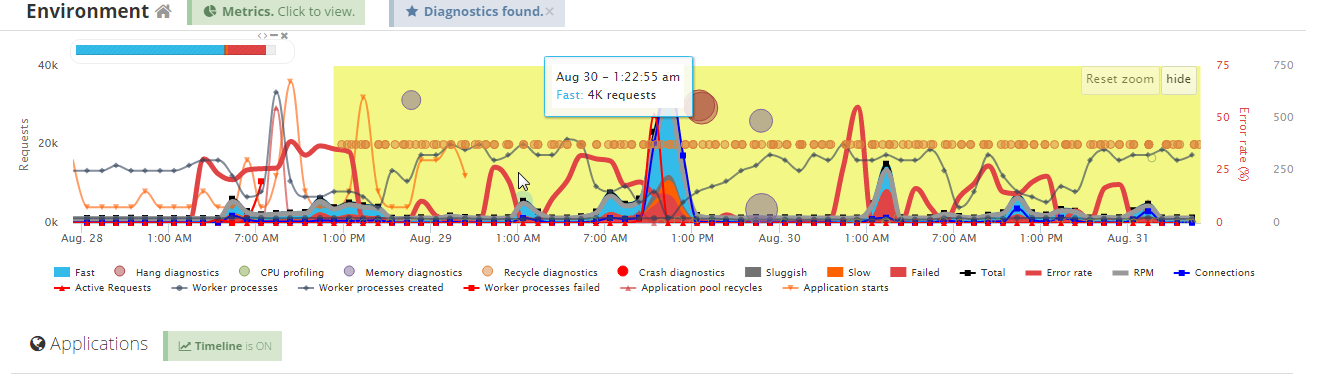

Graph with Monitoring Statistics showing many requests at different times

Testing Our Hypothesis

Can we improve upload times by changing how we log our data?

Test run with current logging on

# Requests	# Failed	Median	Average	Min Resp	Max Resp	# Reqs/second
4107	2135	31	32.4	0	108	0.63

Request times in seconds

Test run with experimental logging utility

# Requests	# Failed	Median	Average	Min Resp	Max Resp	# Reqs/second
495	588	11	11.38	0	22.8	0.5

Request times in seconds

Results

65% decrease in the median and average upload times

Small change with an impressive impact
